LNG Low Temperature Pressure Reducing Valve
Introduction:
LNG low temperature pressure reducing valve is used on the cryogenic storage tank to keep the pressure of LNG within a specified range, that is, the valve that reduces the high pressure before the valve of the LNG liquefied natural gas medium and stabilizes it at the required pressure value at the outlet after the valve.
Features:
1. Compact structure, small size, light weight, sensitive adjustment and good stability.
2. With adjustable device, easy pressure adjustment
3. The valve is cryogenically treated and can withstand -196°C low temperature.
4. The gasket still has reliable sealing performance and recovery performance under normal temperature and low temperature state and rapid temperature change.
Drawing:
Main Parameters:
| Size |
DN10~100 |
| Working Temperature |
-196℃~+80℃ |
| Design Pressure |
2.5MPa |
| Connection Way |
Thread, Welded |
| Suitable Medium |
LNG |

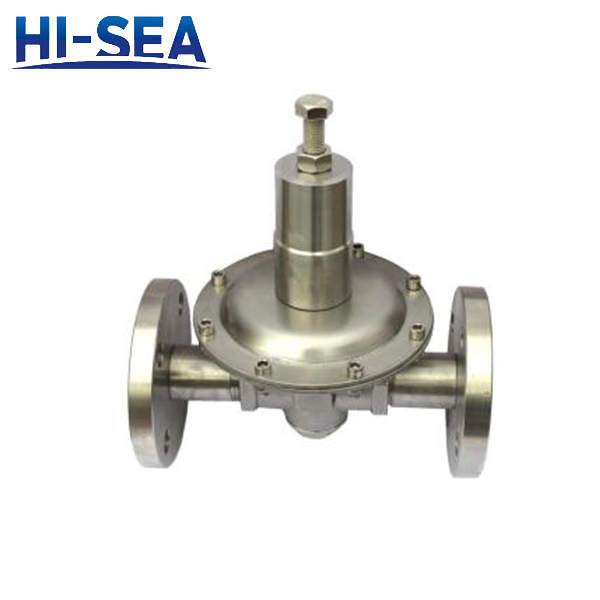

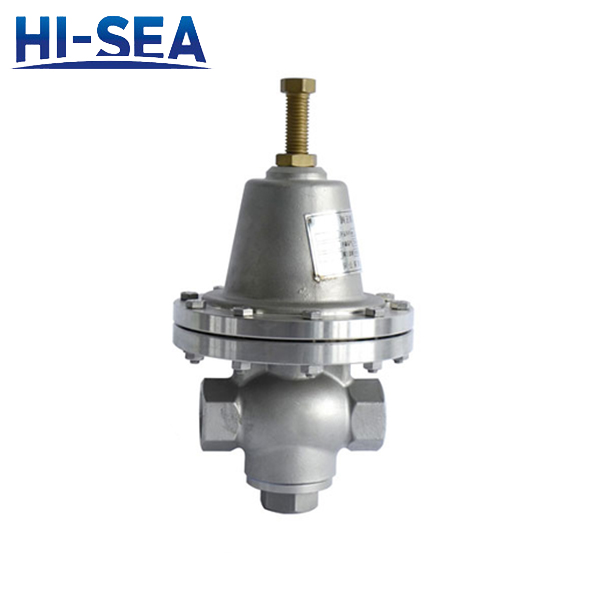

Product Showing:
